Identify electrical hotspots before they cause outages in low voltage transformers

Electrical hotspots in Low Voltage Transformers are a symptom of overheating joints or connections that have the potential to cause power outages

icon-q

Constant heating and cooling of electrical assets causes joint friction

icon-q

Poorly fitted or loose connections result in higher resistance

icon-q

Vibration or mechanical stress on joints can loosen them over time

icon-q

Heat within joints and connections can increase to the point of failure

Exertherm-Application Brochure-LV Transformer

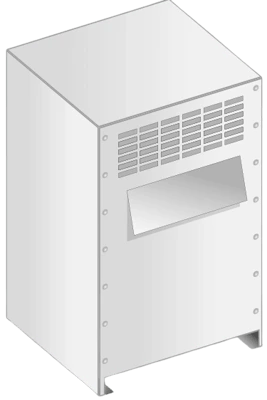

LV Transformer

exertherm-lv-transformer-thermal-monitoring copy 2

Protect low voltage transformers with continuous thermal monitoring sensor technology

Sensor looms connects back to the MCC Datacard (MMD), which collects and transmits the Sensor temperature data, and activates alarms when a fault is detected. The MMD is housed in an external enclosure, along with the LEDs to provide local alarm status.

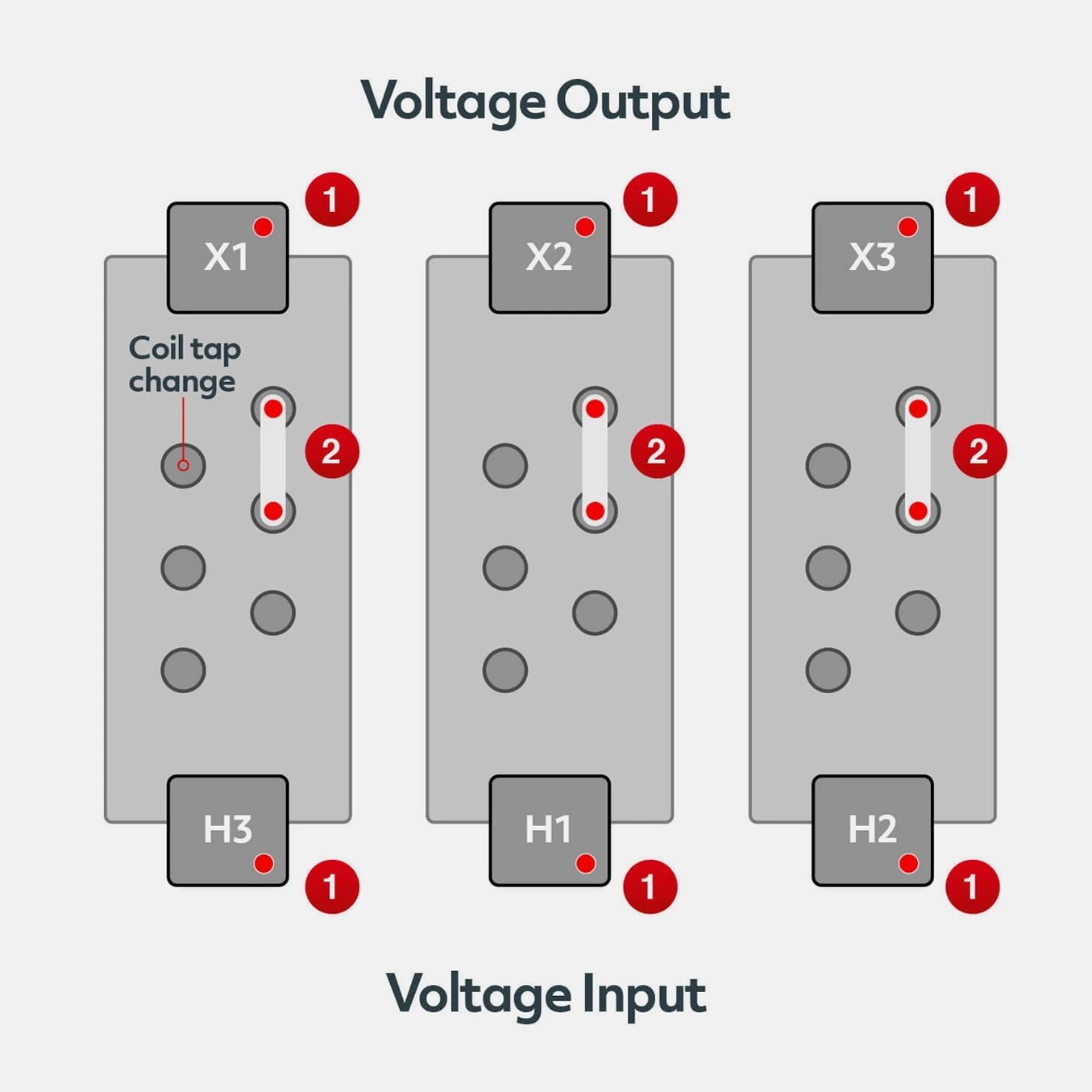

1. Sensor loom continuously monitors both the Voltage Input and Voltage Output connections

2. Sensor loom continuously monitors coil tap change connections

Features

The Low Voltage Transformer solution is suitable for both new build and retro-fit installation, and is also OEM vendor neutral.

Simple kit form

LV Transformer sensors from Exertherm are supplied in a kit form to make installation as simple as possible.

Continuous monitoring

Permanently installed sensors are fit-and-forget technology that continuously monitors the temperature of critical joints or connections.

High efficiency

This non-contact and non-powered solution creates it's own power supply from within the asset to monitor critical bus and joint connections.

Real-time data

Once installed the sensors work 24x7, 365 days a year to continuously monitor your critical electrical assets and provide condition data.

Product

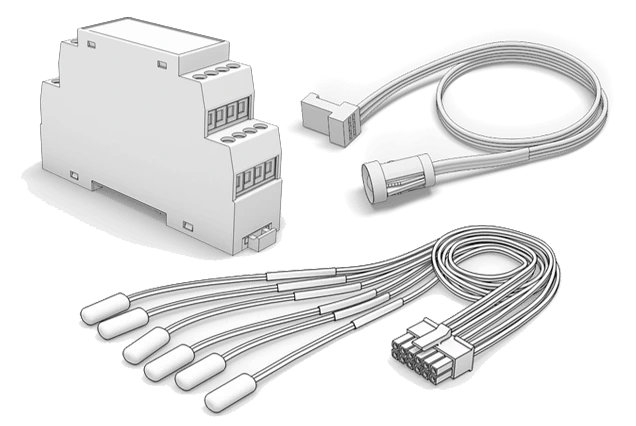

  • MMD Datacard
  • Status LED
  • Sensor Loom
MCC In-Drawer _ In-Bucket Solution
1
1
MMD Datacard

Collects Sensor Data

2
2
Status LED

Displays current monitoring status

3
3
Sensor Loom

6 Sensor Loom connects to key monitoring points on the LV Transformer

MCC In-Drawer _ In-Bucket Solution
1
1
MMD Datacard

Collects Sensor Data

2
2
Status LED

Displays current monitoring status

3
3
Sensor Loom

6 Sensor Loom connects to key monitoring points on the LV Transformer

MCC In-Drawer _ In-Bucket Solution
1
1
MMD Datacard

Collects Sensor Data

2
2
Status LED

Displays current monitoring status

3
3
Sensor Loom

6 Sensor Loom connects to key monitoring points on the LV Transformer

Connectivity

The LV Transformer (MTS) thermal condition monitoring solution can be connected in 2 ways.

Relay Only

Local status LED + local/remote alarms.

Exertherm® MCC Aggregator (MMA)

Local status LED + local/remote alarms + transfer of raw data via Modbus 485.

Need more info? Let's talk

Get in touch to find out more about LV Transformer by filling in the form. One of the Exertherm team will reach out to learn more about your requirements as soon as we can.

Group 2342-1
Need technical help?

Reach out to an expert for support

Group 2343-1
Commercial enquiries

Our sales team can help you

Why Choose Exertherm?

Exertherm® is the global number one provider of 24x7 Thermal Condition Monitoring for electrical infrastructure, successfully installed worldwide by all major OEMs. We deliver complete solutions for LV/MV Switchgear, MCC Drawers, Dry Transformers and more. We’re so proud of our proven reliability we even offer a zero maintenance lifetime guarantee.

Group 2163 1

24x7 Thermal Monitoring

Group 2163 1

Simple Installation

Group 2163 1

Increase Team Safety

Group 2163 1

Zero Maintenance

Group 2163 1

Lifetime Guarantee

Group 2163 1

Global OEM Approved
